M&M Hydraulic Co., based in St. Paul, Minnesota, provides hydraulic system solutions for industrial applications where precise control and reliability matter. One key application area is Electric Arc Furnace (EAF) systems, where hydraulic performance directly affects electrode movement, system stability, and equipment protection. These systems operate under extreme mechanical loads, requiring controlled hydraulic response to manage motion safely and consistently.

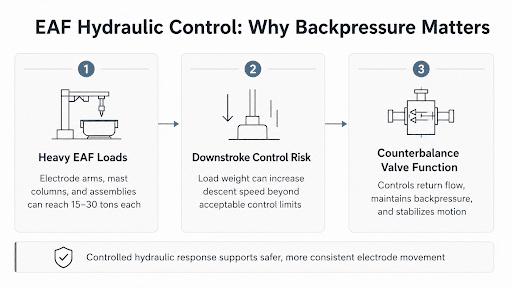

Understanding the Challenge of EAF Hydraulic Control
EAF systems operate with electrode arms, mast columns, and related assemblies that can reach 15–30 tons each. These loads vary depending on wear conditions and operating cycles. During lowering movement, the weight can increase descent speed beyond acceptable control limits. Without proper regulation, this can lead to electrode damage or unstable furnace operation. A hydraulic counterbalance valve plays a key role in controlling this motion by managing return flow and stabilizing load behavior.
What is an EAF Counter-Balance System?
An EAF Counter-Balance Valve is used to control hydraulic backpressure during electrode movement. It offsets the weight of the electrode assembly so the system maintains controlled movement during downstroke operation. Each phase of an EAF system carries different load conditions, making uniform balancing difficult. This variation requires phase-based control rather than a single fixed setting across all operations.
Traditional Counter-Balance Approaches
Older systems used basic methods such as manual flow restriction back to the tank or separate hydraulic balancing cylinders per phase. Some setups relied on independent hydraulic circuits dedicated to balancing functions. These approaches require frequent adjustment and add system complexity, especially when operating conditions change during furnace cycles.

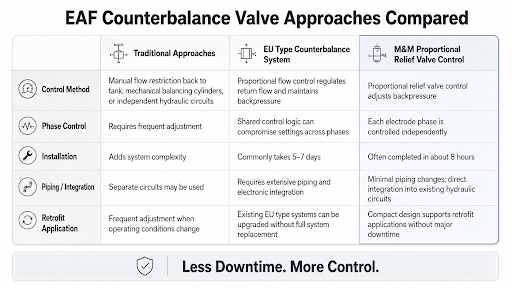

EU Type Counterbalance Valve Systems
The EU type counterbalance system uses proportional flow control to regulate return flow and maintain backpressure. This approach is widely used in modern EAF installations and supports smoother electrode movement compared to older systems. It also helps reduce electrode breakage risk.
However, installation is more involved. It requires extensive piping, electronic integration, and coordination across phases using shared control logic. Because of this, settings are often compromised across multiple phases rather than fully optimized per phase. Installation commonly takes 5–7 days in conventional systems.
Hydraulic Counterbalance Valve Function in EAF Systems
A hydraulic counterbalance valve regulates the pressure returning to the tank from electrode cylinders. By controlling backpressure, it manages descent speed and stabilizes motion during operation. This controlled hydraulic behavior supports more consistent electrode positioning and reduces sudden load shifts during furnace activity.
M&M Hydraulic Co. Approach: Proportional Relief Valve Control
M&M Hydraulic Co. uses a proportional relief valve approach developed for phase-specific control. Each electrode phase is controlled independently, allowing backpressure adjustment based on real-time operating conditions. The system uses a simple 4–20 mA or 0–10 V input signal for adjustment and is designed for direct integration into existing hydraulic circuits. This patented approach focuses on practical installation and control simplicity.
Advantages of the M&M EAF Counterbalance Valve System
Other systems installation is 5–7 days, but M&M Hydraulic Co.’s patented counterbalance valve system is designed for fast installation, often completed in about 8 hours. It is installed directly between existing hydraulic valve components, reducing the extent of piping modifications required. Each phase is independently adjustable, allowing system tuning based on operating needs. The compact design also supports retrofit applications without major downtime.
Operational Benefits in EAF Performance
Phase-based control improves electrode movement stability during arc regulation. It supports smoother response across changing load conditions and improves regulation behavior during fast movement cycles. This leads to more consistent furnace operation and better control over electrode positioning.
Industry Opportunity and System Upgrades
Existing EU type systems can be upgraded without full system replacement. M&M Hydraulic Co. provides a practical alternative that reduces installation time and system complexity. The solution also supports integration with OEM systems and EAF optimization partners seeking improved hydraulic response without extended downtime.
8 Hours vs 7 Days Changes Everything
M&M Hydraulic Co. delivers its patented fast-install EAF hydraulic control system with phase-based adjustment and minimal system disruption. When downtime matters, slower systems fall behind. Talk to M&M Hydraulic Co. about upgrading your EAF hydraulic control system.
